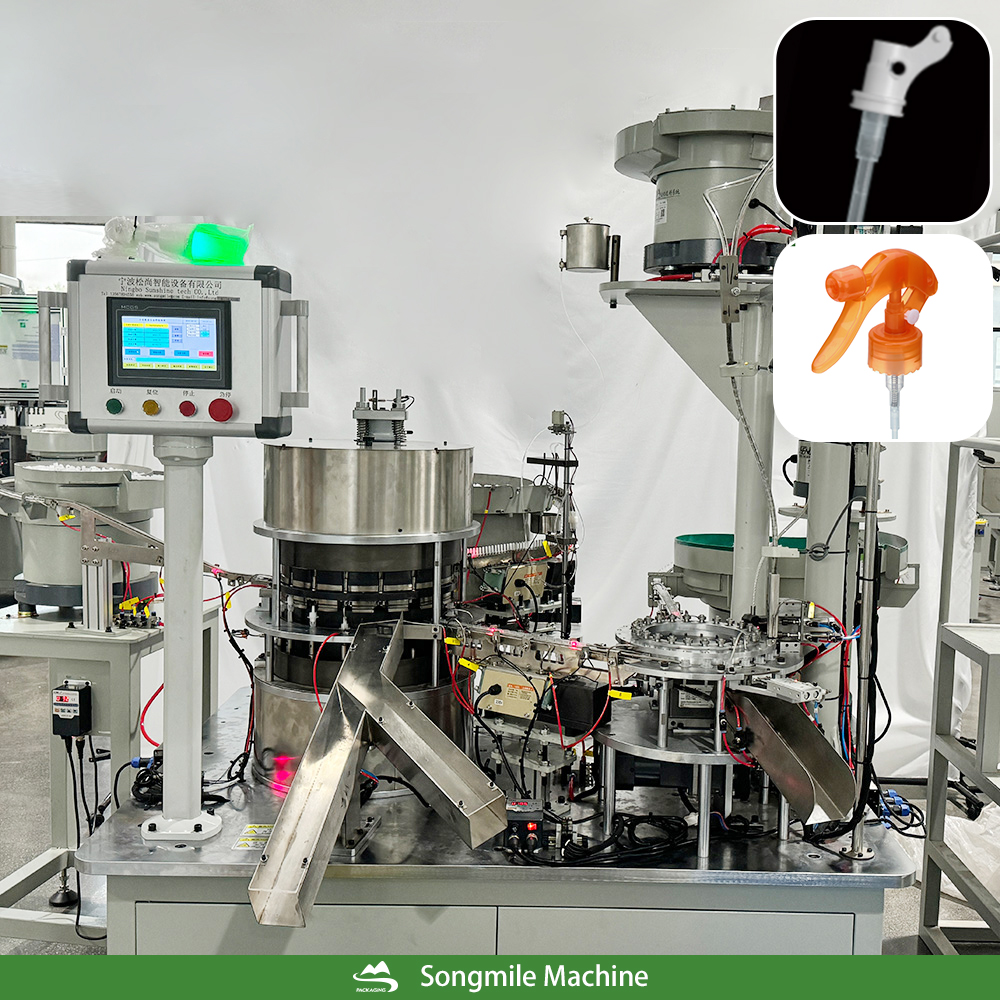

SR-MTM-04 Pump Core 5-piece Assembly Machine

Name: SR-MTM-04 Pump Core 5-piece Assembly Machine
Brand: Songmile Packaging
Author: Zu, Tingting

Simple interface, strong operability
High production capacity, reducing labor costs
Simple mold switching, easier to use
With safe position detection, the product will not be drawn into the machine and cause damage to the machine

Cov Lus Qhia Ntxiv

kev ua hauj lwm	Mini Trigger Pump Five-piece Set Assembly Machine

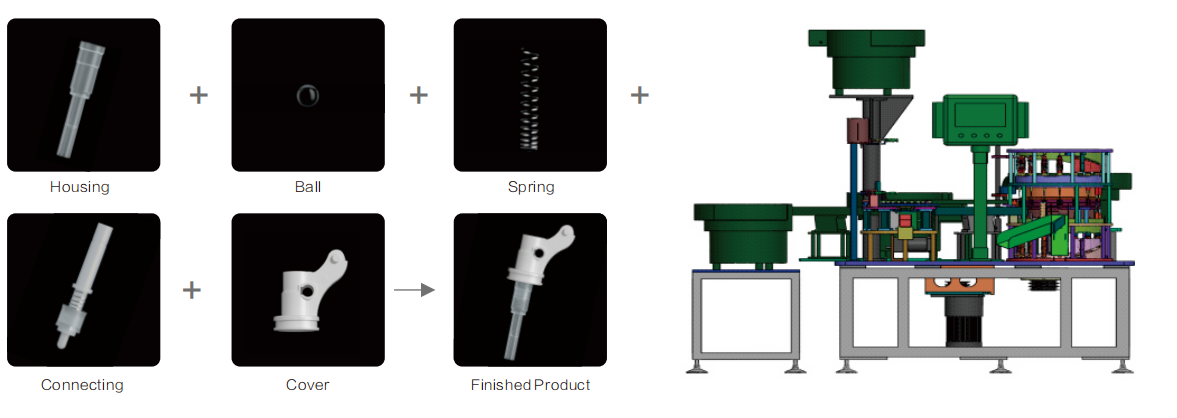

Assembly Sequence	Pump body feeding detection → Glass ball feeding detection → Spring feeding detection → Piston component feeding detection → Connecting cover feeding → Finished&defective product discharge
Product Model	SR-MTM-04
Delivery Date	90 Hnub
Production Capacities	110 pcs/min
Dimension(lwh)	3m3m1.8m
Voltage	Standard 220v, Customizable

Download tau: Pump Core 5 Piece Assembly Machine ↑

Specification

Mini Trigger Pump Core 5-piece Assembly Machine

Main Line: Pump Body Assembly

Pump Body Feeding & Inspection: First, the pump body enters the corresponding station through the material rail and is inspected.
Glass Ball & Spring Feeding: Then, the glass ball feeding inspection and spring feeding inspection are carried out in sequence.
Internal Component Installation: The glass ball and spring enter the pump body in order.
Connecting Rod Assembly: The turntable continues to rotate to the connecting rod feeding inspection station and completes the assembly.

Sub-Assembly Line: Piston Assembly (Simultaneous Process)

Piston Assembly & Inspection: In parallel, the piston assembly enters its corresponding station through the material rail to complete its own assembly and inspection.

Final Stage: Tswjhwm & Discharge

Unified Rejection of Defectives: Finally, all defective products that fail any inspection will be uniformly separated and discharged.
Quality Assurance: The entire process is efficient and automated, with the quality of each link being strictly controlled to ensure the quality and reliability of the final product.

Peb Hoobkas

Peb tsim peb tus kheej

Peb Cov Kev Pab Cuam

Ntau lawm txheej txheem

Peb Exhibitions

Vim li cas peb thiaj xaiv tau peb txoj

1. Hais txog cov qauv dawb?

Muaj, qauv no dawb. Tab sis tus nqi qhia yog rau tus buyer tus account.
Shipping txoj kev: EMS, DHL, FedEx, UPS, TNT, Tuam Tshoj ncej, thiab lwm yam.

2. Koj yog ib lub Hoobkas? Koj puas export cov khoom ncaj qha mus ncaj qha?

Muaj. Peb yog trading thiab manufacturing tuam txhab, Peb yuav export cov khoom los ntawm peb tus kheej.

3. Tswj kom tswj tau tus kheej?

Daim ntawv qhia txog kev soj ntsuam ntawm assemble kab los ntawm kev tshuab kev tshuab.
Tas cov khoom thiab ntim kev soj ntsuam.

4. Cov nqe lus luam thiab cov nqe lus them?

Cov ntsiab lus trade: FOB &CIF ,C&F.. Kev Them Nyiaj Yug Me Nyuam : T/T/T , 30% nyiaj ua hauj lwm, 70% shipping. Tas cov khoom thiab ntim kev soj ntsuam.

5. Li cas lub sij hawm ntawm tus me nyuam?

ncaj ncees, Nws nyob ntawm qhov kev txiav txim kom muaj nuj nqis thiab lub caij koj muab qhov kev txiav txim. feem ntau, tus me nyuam yuav nyob ib ncig ntawm tus me nyuam 30-35 Hnub.

6. Hais txog muaj peev xwm tsim ib yam khoom tshiab?

Peb muaj ib pab neeg uas excellent designers uas yuav tsim khoom tshiab raws li tus neeg thov.
